AquaTrainer Swim Spas

The AquaTrainer Swim Spa... The Perfect Swim

The AquaTrainer swim spa has an adjustable swim current that gives you the ability to concentrate on your stroke technique at your personel swim level.

LEARN MORE

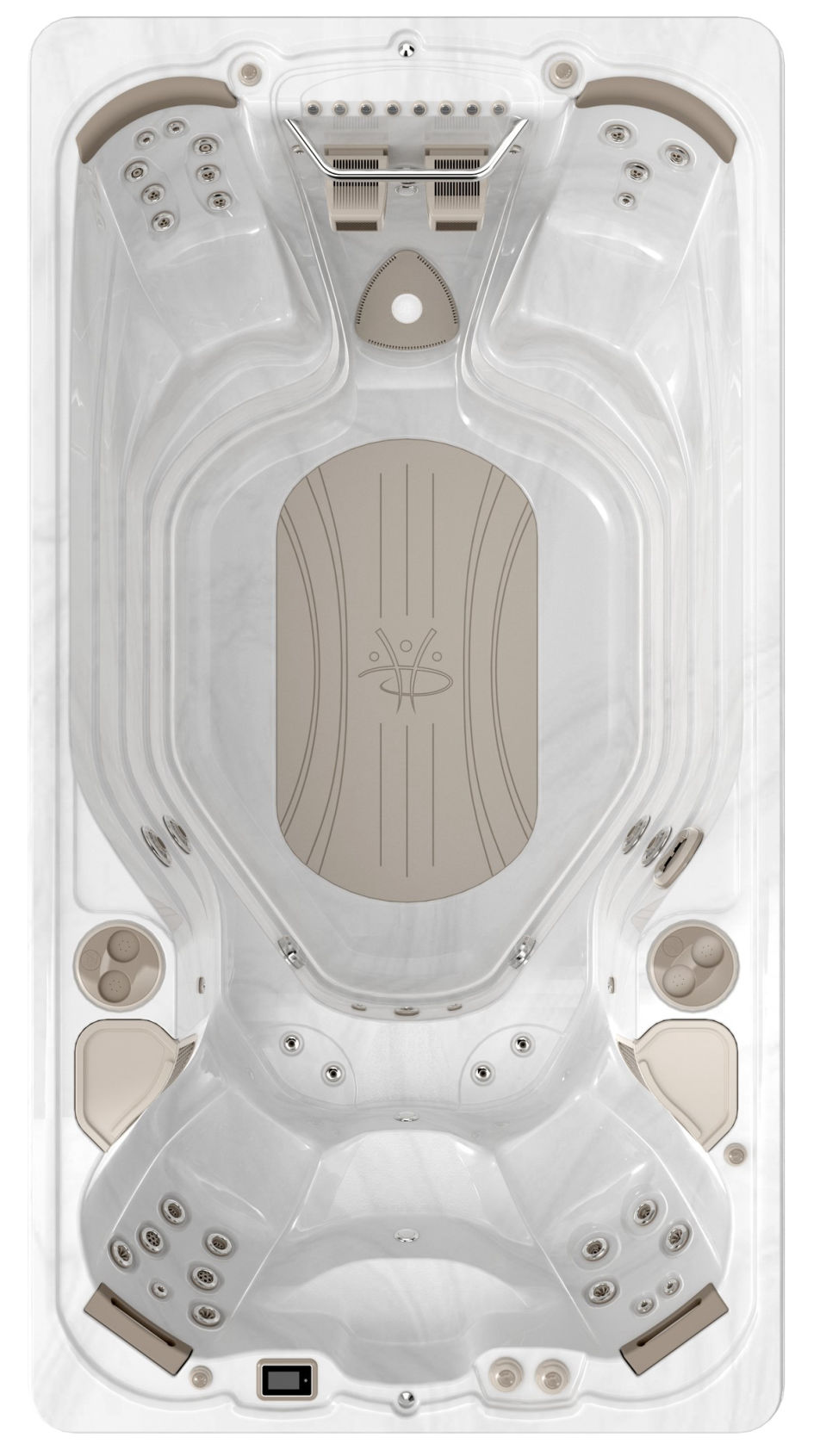

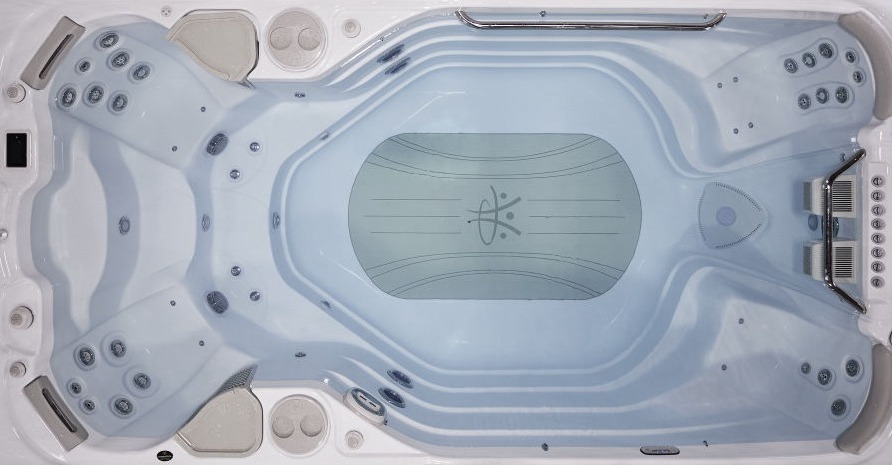

14AX AquaTrainer

. Aquapro Current Control
. 2 x V-Twin Swim Jets, 1 x Buoyancy Jet
. 1 x HydroClean Plus Filtration Pump
. 1 x 4 HP Evergreen Single Speed Pump
. 2 x 5 HP Aqua Boost Swim Pumps
. 1 x 4Kw Heater - Optional upgrade to 2nd 4kw Heater
. 4 Persons Hydrotherapy Seating
. 29 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
174" x 93" (442 cm x 236.2 cm)

Height
52.75" (134 cm)

Volume
1,900 US gallons (7,220 L)

Weight Full
18,445 lbs (8,369 Kg )

Weight Empty
2,532 lbs (1,149 Kg)

Get Prices

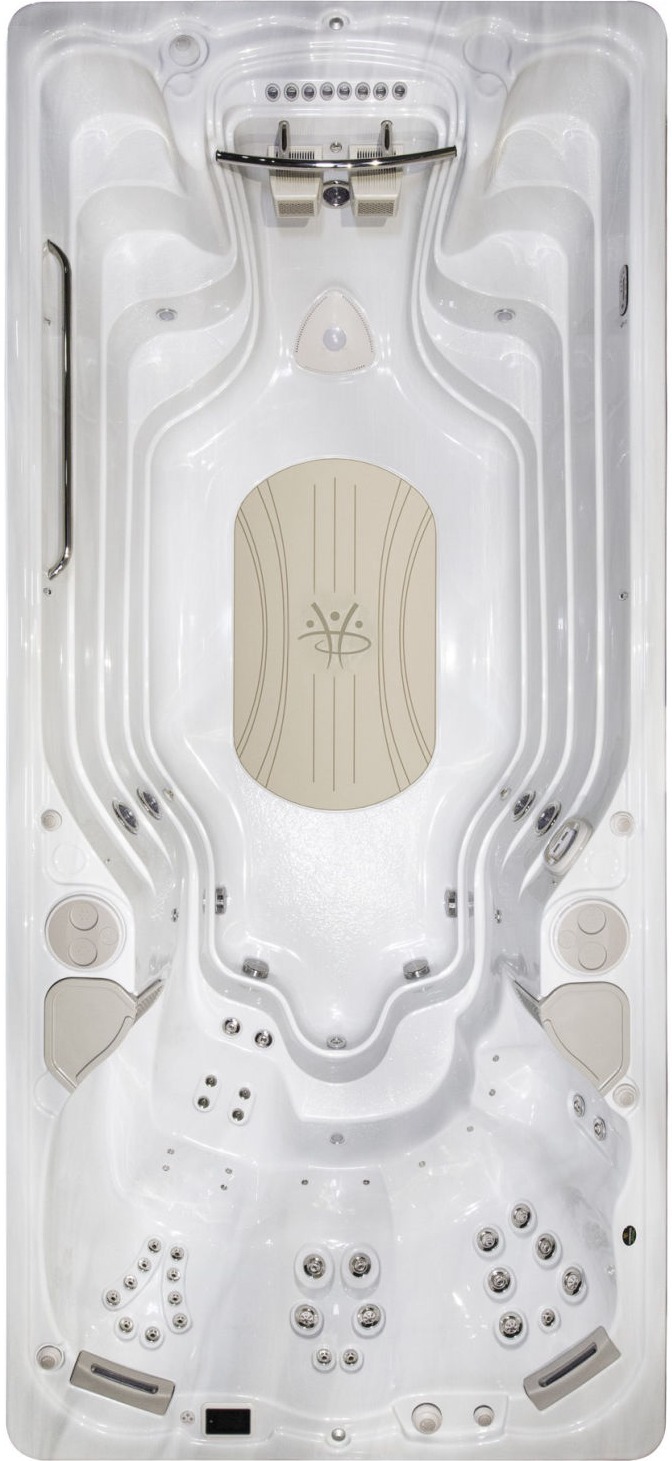

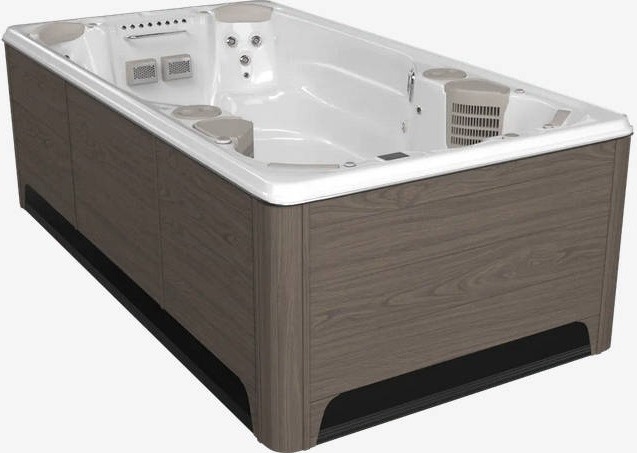

17AX AquaTrainer

. Aquapro Current Control
. 2 x V-Twin Swim Jets, 1 x Buoyancy Jet
. 1 x HydroClean Plus Filtration Pump
. 1 x 4 HP Evergreen Single Speed Pump
. 2 x 5 HP Aqua Boost Swim Pumps
. 1 x 4Kw Heater - Optional upgrade to 2nd 4kw Heater
. 5 Persons Hydrotherapy Seating
. 31 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
210" x 93" (533 cm x 236.2 cm)

Height
52.75" (134 cm)

Volume
2,400 US gallons (9,170 L)

Weight Full
22,990 lbs (10,413 Kg)

Weight Empty
2,890 lbs (1,310 Kg)

Get Prices

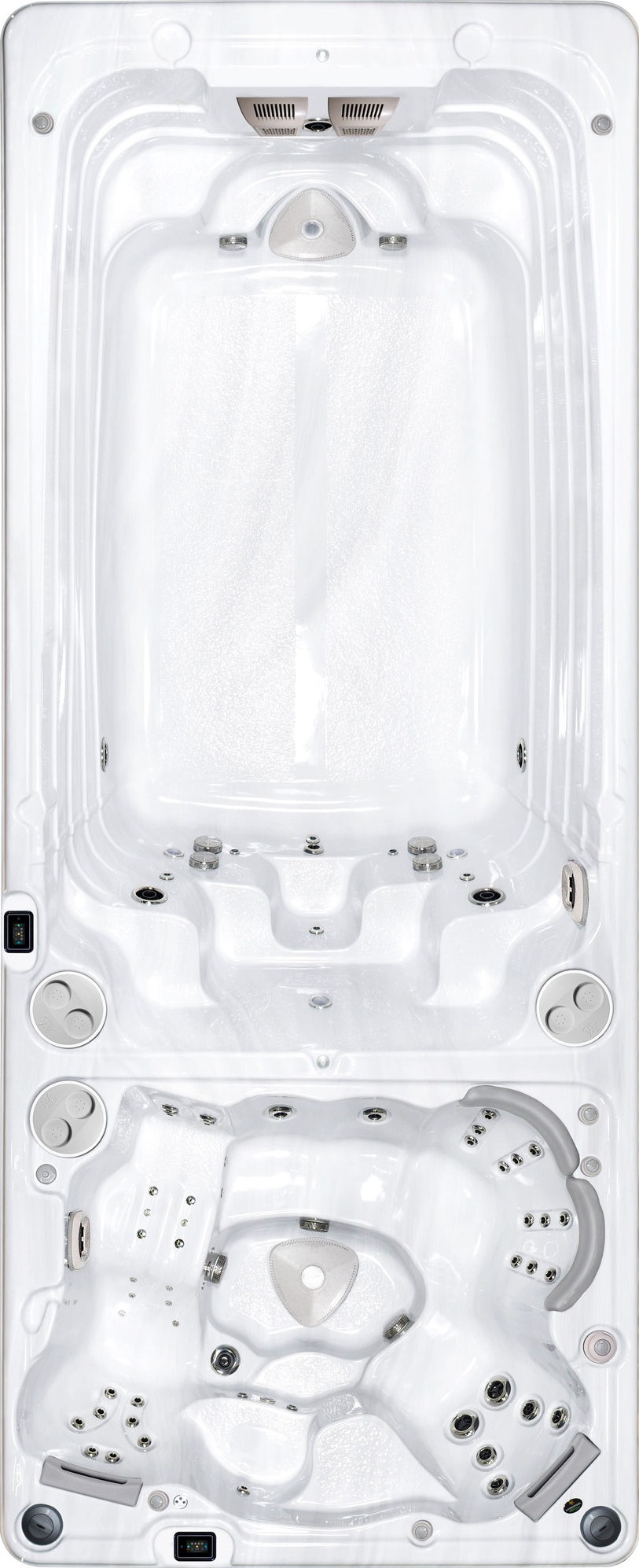

19ft DTfx AquaTrainer Swim Spa and Hot Tub combo

19ft DTAX Aquatrainer (Video)

SWIM SPA
1 x 4HP Evergreen Two Speed Pump
2 x 5 HP Aqua Boost Swim Pumps
2 x High Flow V-Twin Swim Jets
1 x High Flow Slipstream Swim Jet
1 x 4Kw Heater - Optional upgrade to 2nd 4kw Heater
1 x HydroClean Filtration Pump

HOT TUB
4-5 Persons
1 x 4HP Evergreen Two Speed Pump
1 x HydroClean Filtration Pump
1 x 4Kw Heater
36 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
226" x 93" (574 cm x 236.2 cm)

Height
53" (135 cm)

Volume
Swim Spa
1762 US gallons (6670 L)

Hot Tub
315 US gallons (1192 L)

Weight Full
22,000 lbs (10,073 Kg)

Weight Empty
4,000 lbs (1,818 Kg)

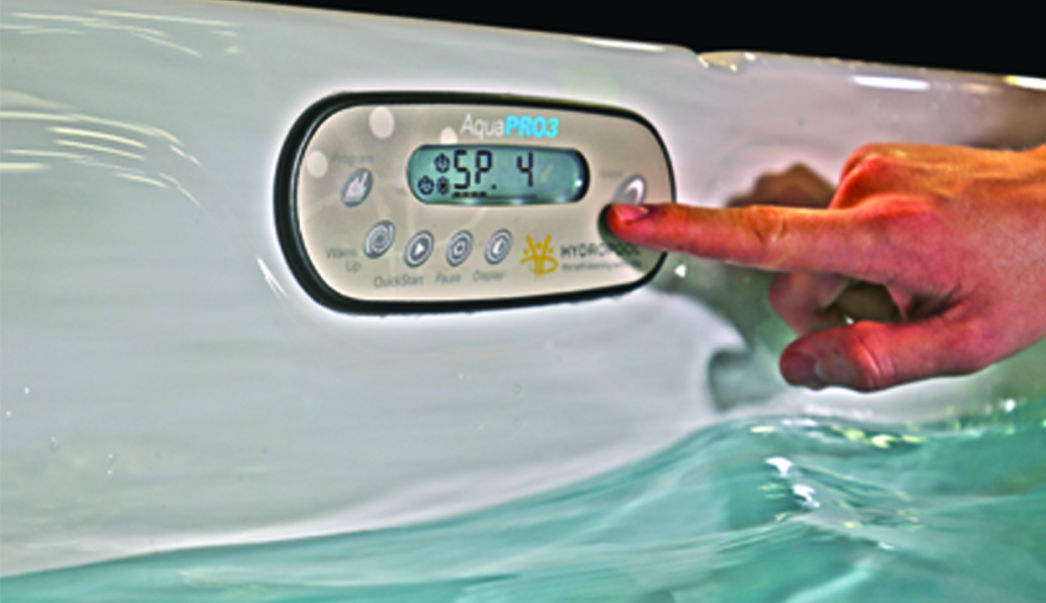

PROGRAMMABLE

AquaPro Control

. Two User Programs

. Two Preset Programs Hill Climb & Interval Program

. 0 - 10 kph swim current range Swim Current with AquaPro (Video)

. Ten (10) speed levels

. Tracks your Calories, Time, Distance and Speed

. Provides Visual Motivation Adjustable to the Level of Swimmer from Novice to Triathlete

AQUACHANNEL SHELL

Aquachannel Shell Design: Complete Loop Design

. Shell hips designed to create an eddy in the seating area

. No reflective wave and keeps swimmer in swim lane

. Largest unobstructed swim tank

. Stabilization hips jets

PUMPS DESIGN

Pumps: Highhest Water Volume Produced

. 2 x 5HP AquaBoost Pumps

. 1 x 3HP Buoyancy Pump located close to jets

HYDRAULICS

Produces a Smoother Current

. Suction located on the step end eliminate turbulence

. 2.5 inch intake and return produce more volume of water

. Sweep 90° elbows produce more flow

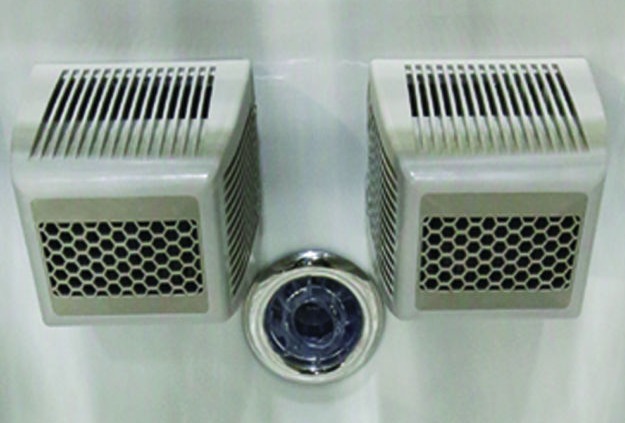

V-TWIN JETS

Technology that produces a Turbulence-Free Swim

. Patented V-Twin technology supercharges the swim current producing over 1,400 gallons per minute, the highest volume of water in the industry

. Producing a wider, deeper and smoother current more than any other system on the market

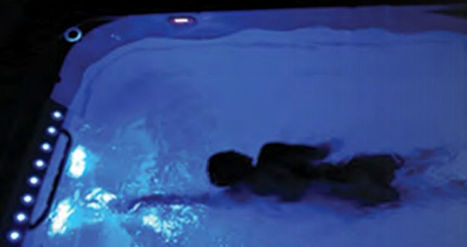

. Backlit to light the swim current
